Adhesive-Lined Heat Shrink Tubing

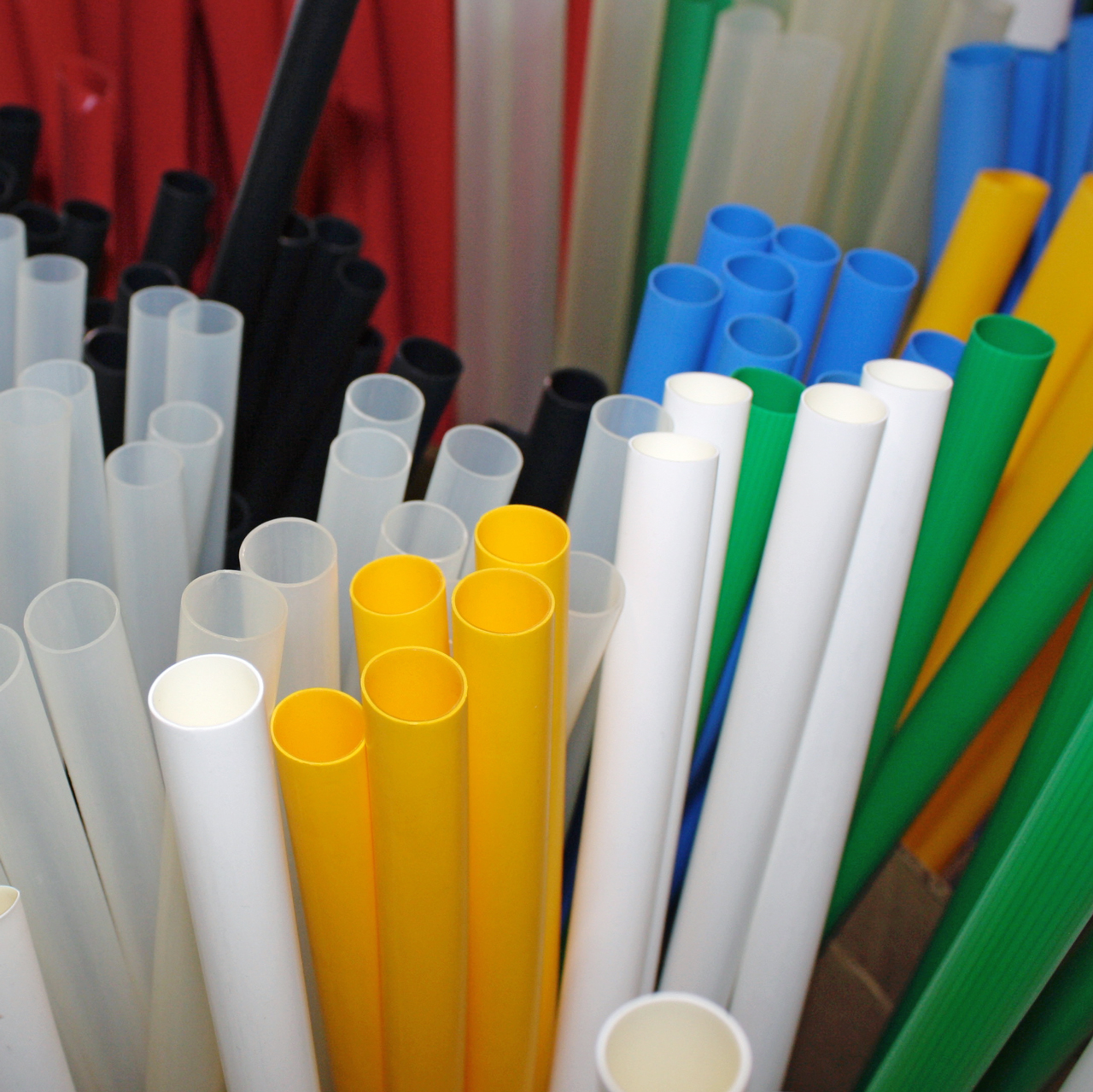

Dual wall adhesive lined heat shrink tubing with environmental sealing capability is ideal for a variety of applications including automotive and marine wire harness bundles, industrial splices, breakouts, and connector to cable transitions.

Features

• Flame retardant jacket

• Superior sealing against water and contaminants

• High 3 to 1 shrink ratio allows for coverage of irregularly shaped connectors and components

• Inner adhesive bonds to plastics, rubber, copper, steel, neoprene, and polyethylene

• Shrink temperature: 110°C

• Continuous operating temperature: -55°C to 110°C

• Available in 1 ft, 4 ft, Pre-Cut lengths and variety packs

• Tip: For optimal wall thickness, durability, and adhesive distribution, select a shrink tube size closest 2x the wire diameter

Applications

• Industrial, electronic, and automotive OEM approvals

• Environmental sealing and strain relief of connectors and terminals

• Moisture sealing and electrical insulation of simple inline splices

• Abrasion resistance for tubes and pipes

• Repair of damaged wire harnesses

Heavy wall adhesive lined heat shrink tubing is impact, abrasion, corrosion, and chemical resistant. Provides mechanical protection, insulation and strain relief for electrical connections and components.

Features

• Adhesive lined crosslinked polyolefin

• Seals out water and dirt

• High 3:1 shrink ratio

• Halogen Free

• SAE, REACH, RoHS compliant

• -55°C to 110°C continuous operating temperature

• 120°C shrink temperature

• Available in 1 ft, 4 ft, Pre-Cut lengths and variety packs

• Tip: For optimal wall thickness, durability, and adhesive distribution, select a shrink tube size closest 2x the wire diameter

Applications

• For Extreme Duty requirements - Heavy duty trucks, tractor trailers, earth moving equipment

• Suitable for Direct Burial

• Rated up to 1 Kv

Approvals and Compliance

• RoHS Compliant

• Halogen Free

• UL 486D

• SAE

• REACH

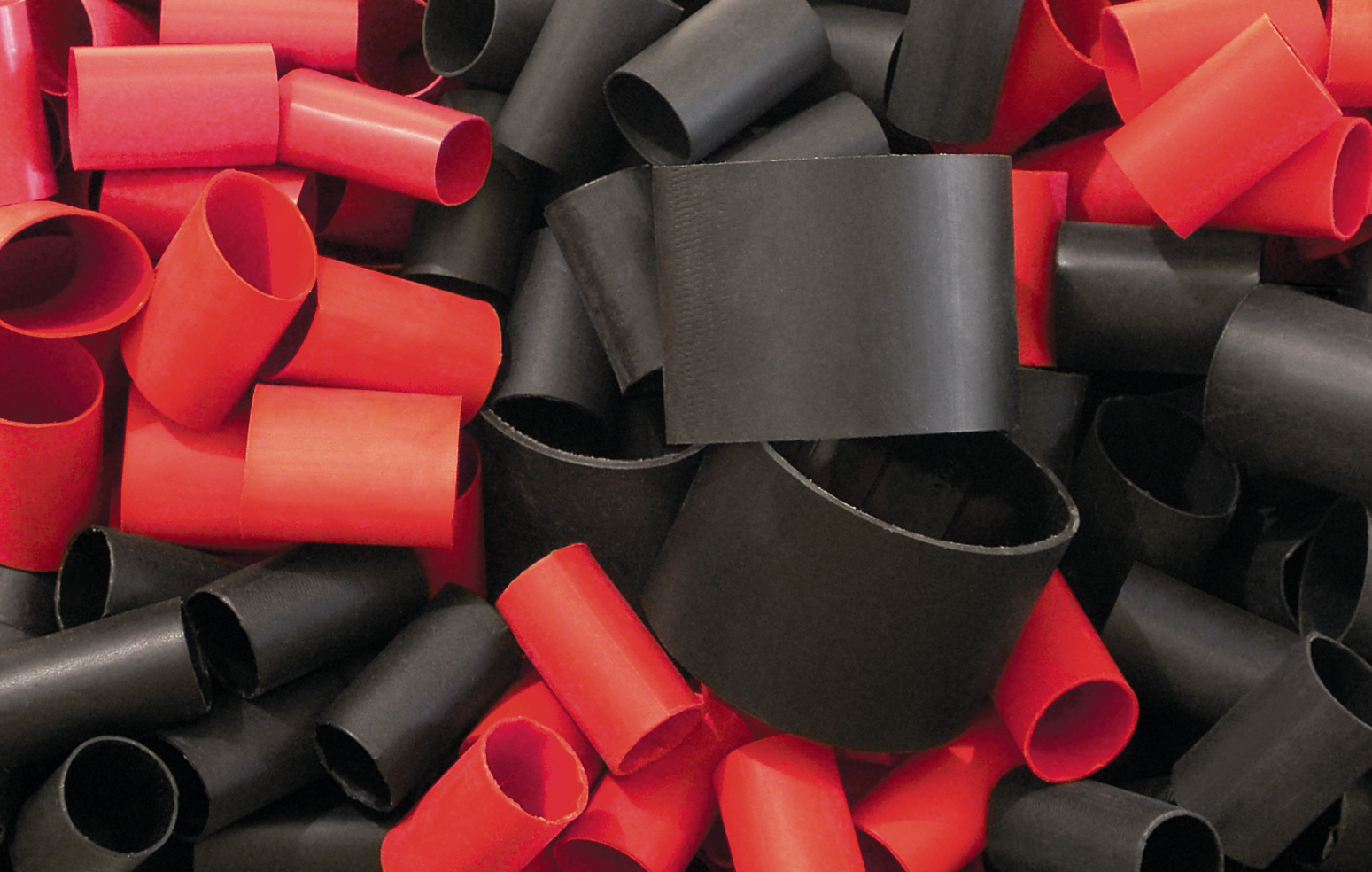

We offer labor-saving precut heat shrink options in various lengths in both dual wall and heavy wall styles available on our online store. In some instances, we also offer custom cutting services of any of our stocked colors at your desired length - minimums apply.
