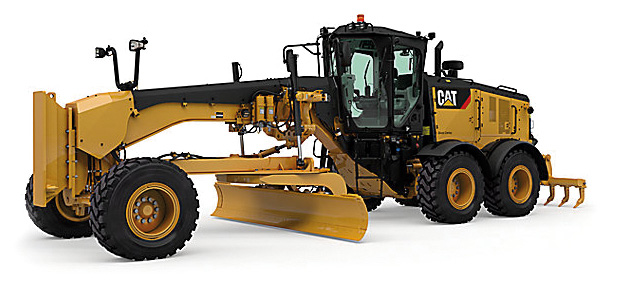

Built for Industry—Ideal for Earth Moving Equipment

Polar Wire pairs High Ampacity J1283 Jump Start Connectors with Arctic Superlex Blue® Wire for a jumpstart cable with outstanding all‑weather performance and long, dependable service life.

Fully compatible with the J1283 connectors used by top manufacturers including Caterpillar, Komatsu, and CASE

100% Copper -- Absolutely NO aluminum
1/0 gauge Jumpstart Cables are sized to meet heavy duty commercial and industrial requirements and standards
Ideal for earth moving and off road machinery, mining, agriculture, and construction equipment, auxillary start systems
Arctic Superflex Blue® cables are tough, flexible, and dependable, even in the most extreme weather
Rated for temperatures of -55°C to 105°C (-67°F to 221°F)
Highly abrasion resistant insulation stands up to oil and gas, salt water, acids, chemicals, and sunlight
Extruded polarity stripe can’t wear off or fade away
1000 Amp heavy gauge copper clamps transmit more current and outperform copper-plated clamps
Braided copper bonding strap sends continuous current to both jaws for higher amperage
Heavy spring pressure for strong connections
Clamps are insulated with rugged, full length overmolded PVC in red and black for polarity identification, and bolted on for easy replacement in case of accidental damage
Heat shrink provides strain relief and seals out moisture, dirt, and corrosion
Meets or exceeds SAE J1283 Standards

Manufactured IN THE USA exclusively by Polar Wire Products

Shop Arctic Superflex Blue^® Jumpstart Cables

Sales Sheet

Built with top quality components and processes for long, trouble‑free service

Arctic Superflex Blue® 1/0 AWG Double Conductor Wire

Our flagship Arctic Superflex Blue® double conductor wire has been tested and used successfully for over three decades in the harsh environment of Alaska’s Arctic North Slope. 100% copper flexible fine stranding and cold tolerant TPE insulation makes our Jump Start cables tangle-free and easy to deploy, roll and stow, even in the worst weather. Cables built with Arctic Superflex Blue® are highly abrasion resistant and stand up to oil and gas, acids, chemicals, salt water and sunlight.

100% Copper Class K fine strand conductors—NO Aluminum!
Flexible, tangle resistant, and easy to handle in deep cold to -55°C (-67°F)
High temperature performance to 105°C (221°F)
Parallel bonded construction, extruded polarity stripe
Exceeds SAE standards

-55°C to 105°C

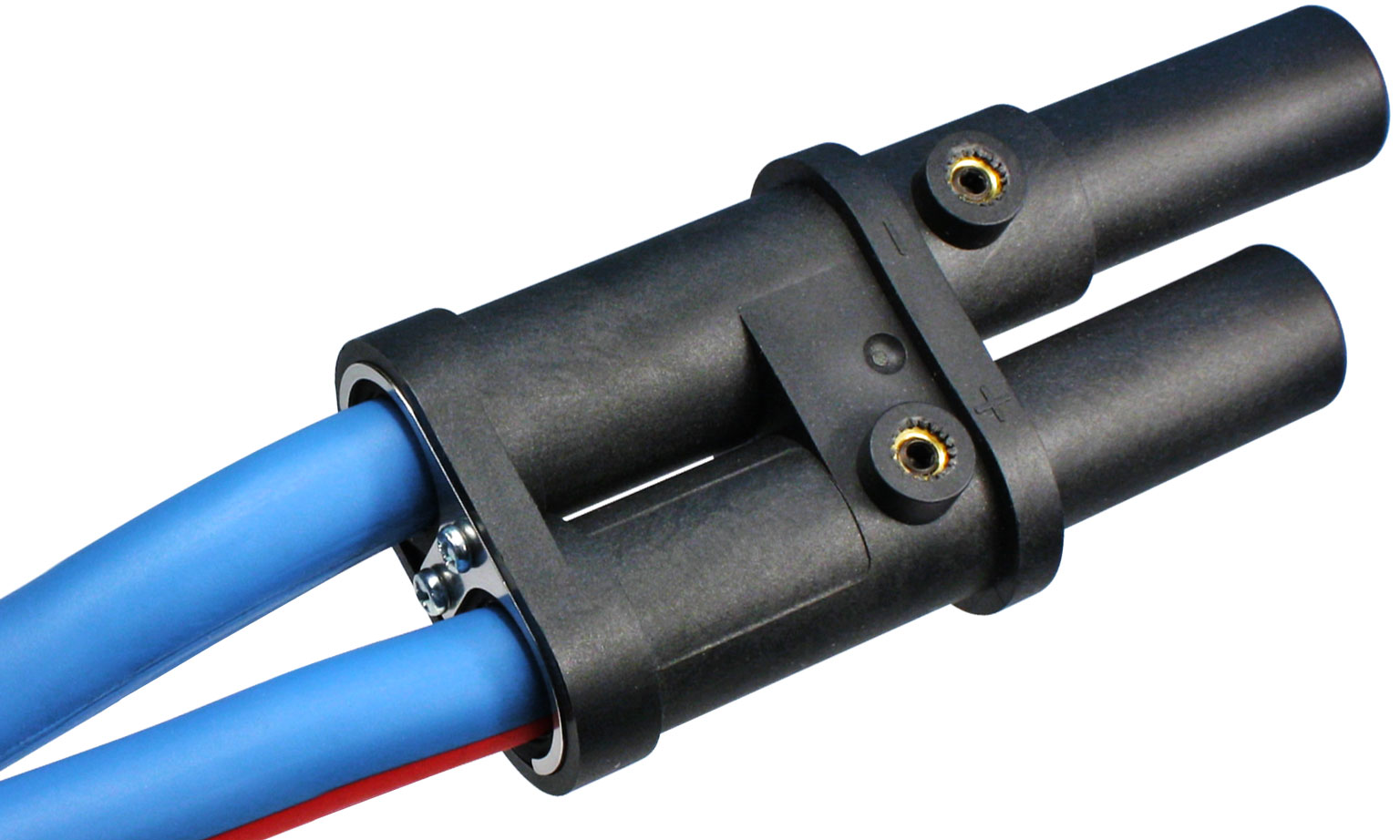

SAE J1283 Plug Connectors

One of the HIGHEST AMPACITY RATED Connectors ON THE PLANET!

500 Amps Continuous, 2000 Amps Intermittent 30 Seconds

Heavy duty, high capacity SAE J1283 Jump Start Plug Connectors provide secure electrical connections for charging or starting heavy equipment and industrial machines. The special plug shape eliminates the chance of cross polarity connections.

Keyed to ensure correct polarity
Zinc coated copper terminals
High impact ABS housing
Meets or exceeds SAE J1283 performance standards
Fully compatible with the J1283 connectors used by top manufacturers including Caterpillar, Komatsu, and CASE

Solid Copper Clamps and Lugs

Polar Wire Jumpstart Cables are constructed with our high performance 1000 Amp Dual Live Jaw Cable clamps. These clamps are manufactured to last, with thick copper jaws, strong steel springs for secure connections, and durable full length overmolded PVC insulation in red and black for polarity identification. Solid copper lugs are crimped securely to the cable ends and sealed with durable heat shrink, then bolted—not riveted—to the clamps for easy replacement in case of accidental damage.

1000 Amp Dual Live Jaw clamps feature a braided copper bonding strap that sends continuous current to both jaws for higher amperage.

Adhesive Heat Shrink

Adhesive Lined Heat Shrink provides a quality finish and adds longevity and durability to Arctic Superflex Blue® Jumpstart Cables. Shrink applied to cable ends seals the lugs and conductors to protect against environmental contaminants and corrosive elements, and provides strain relief at split points. Black and red shrink colors denote polarity.

Protects crimp connections and provides strain relief
Seals out moisture and dirt
Impact, abrasion, corrosion, and chemical resistant
RoHS Compliant
Halogen Free
UL 224, SAE, REACH

Arctic Superflex Blue® Jump Start Cable Configurations

Polar Wire J1283 Jump Start Cables are a critical tool for onsite emergency starting of earth movers, plows, agricultural machinery and other heavy equipment, and are fully compatible with the J1283 connectors used by top manufacturers, including Caterpillar, Komatsu, and Case.

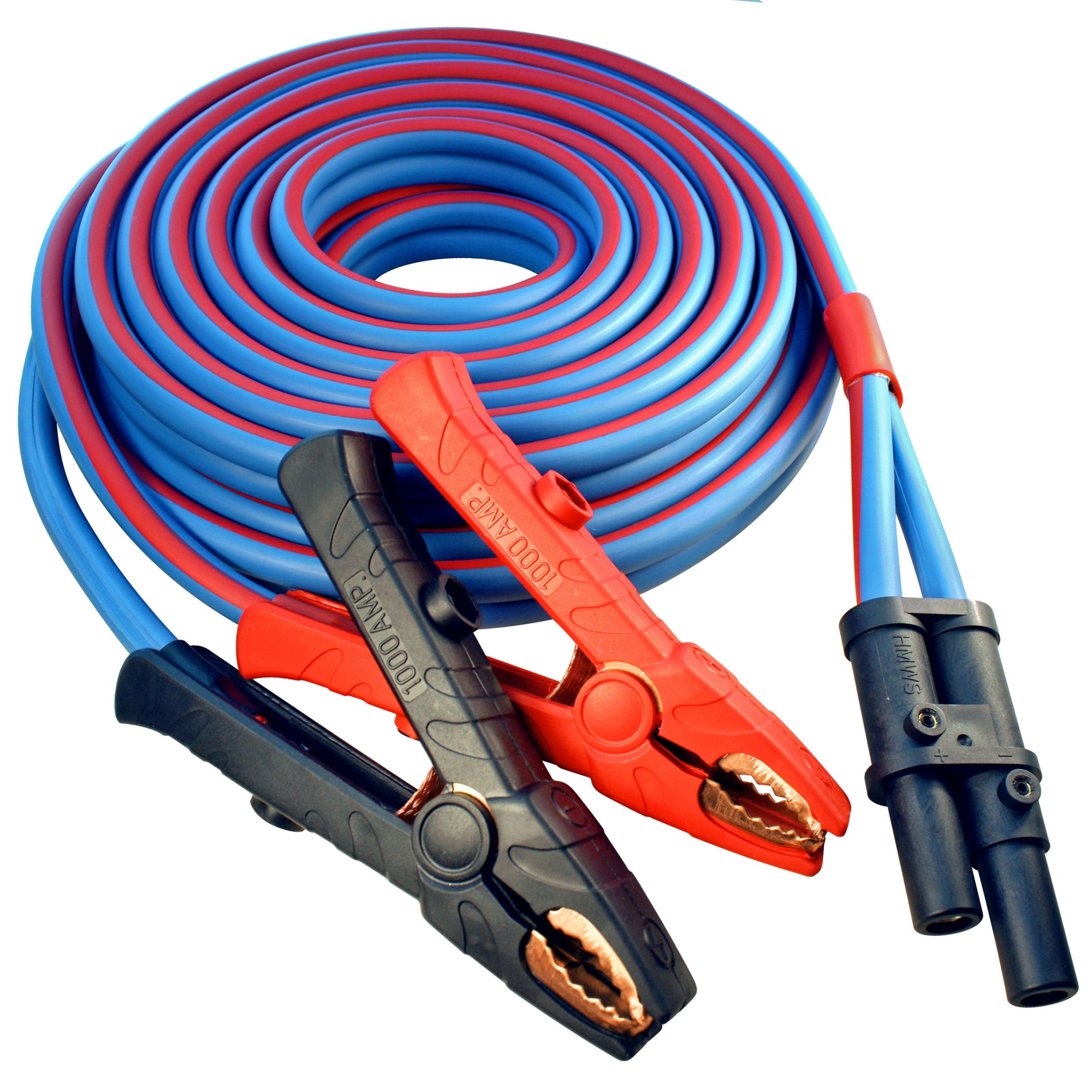

Plug to Clamp

Arctic Superflex Blue® Jump Start Cables are fitted with 1000 Amp solid copper clamps and SAE J1283 plug connectors. Our generous cable lengths extend access in difficult situations and handle and stow easily. These cables are designed for extreme performance and long service life in demanding conditions.

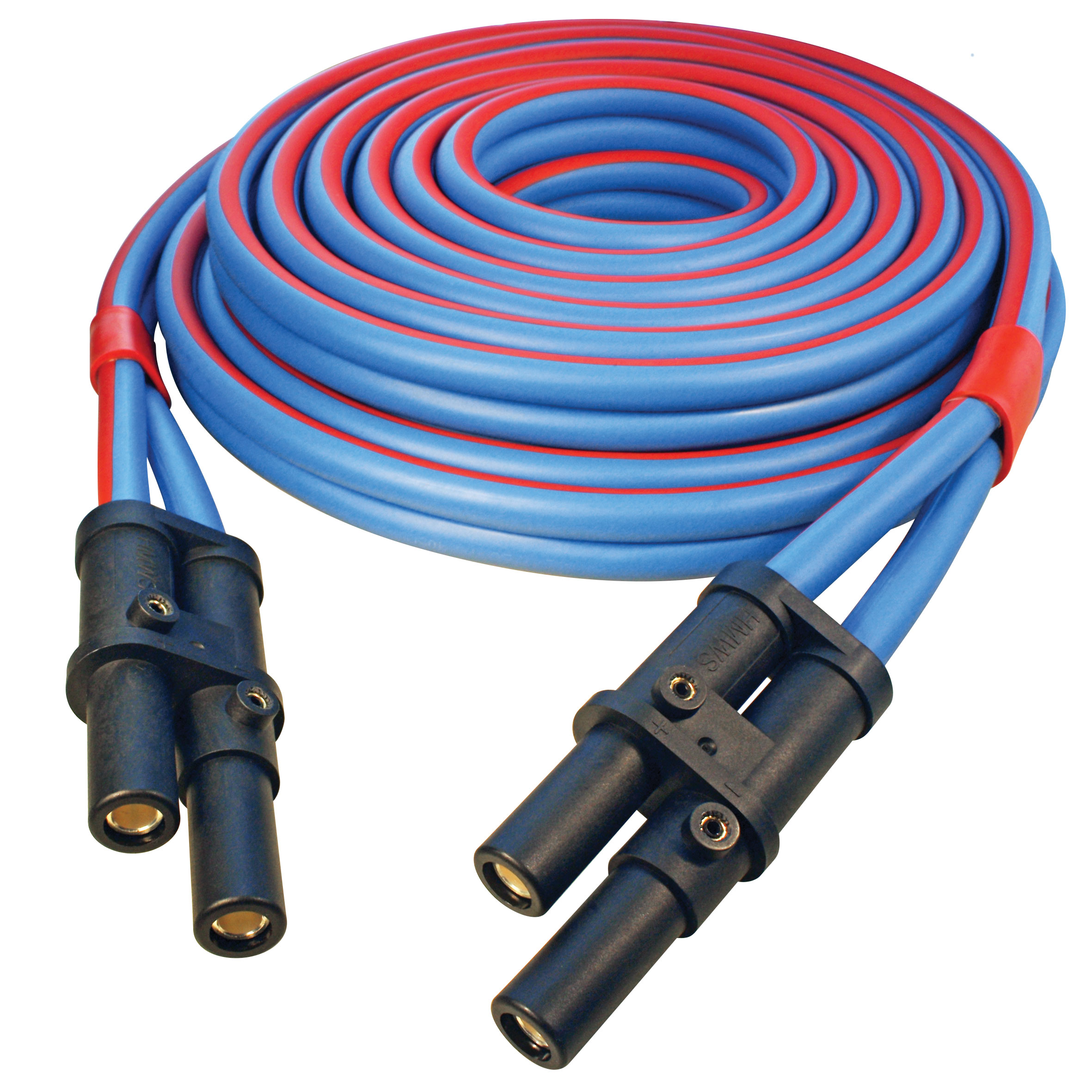

Plug to Plug

Jump Start Plug to Plug Connector Cables are constructed with tough, flexible Arctic Superflex Blue® wire and SAE J1283 plug connectors on each end. Adhesive heat shrink applied at split points provide durable strain relief.

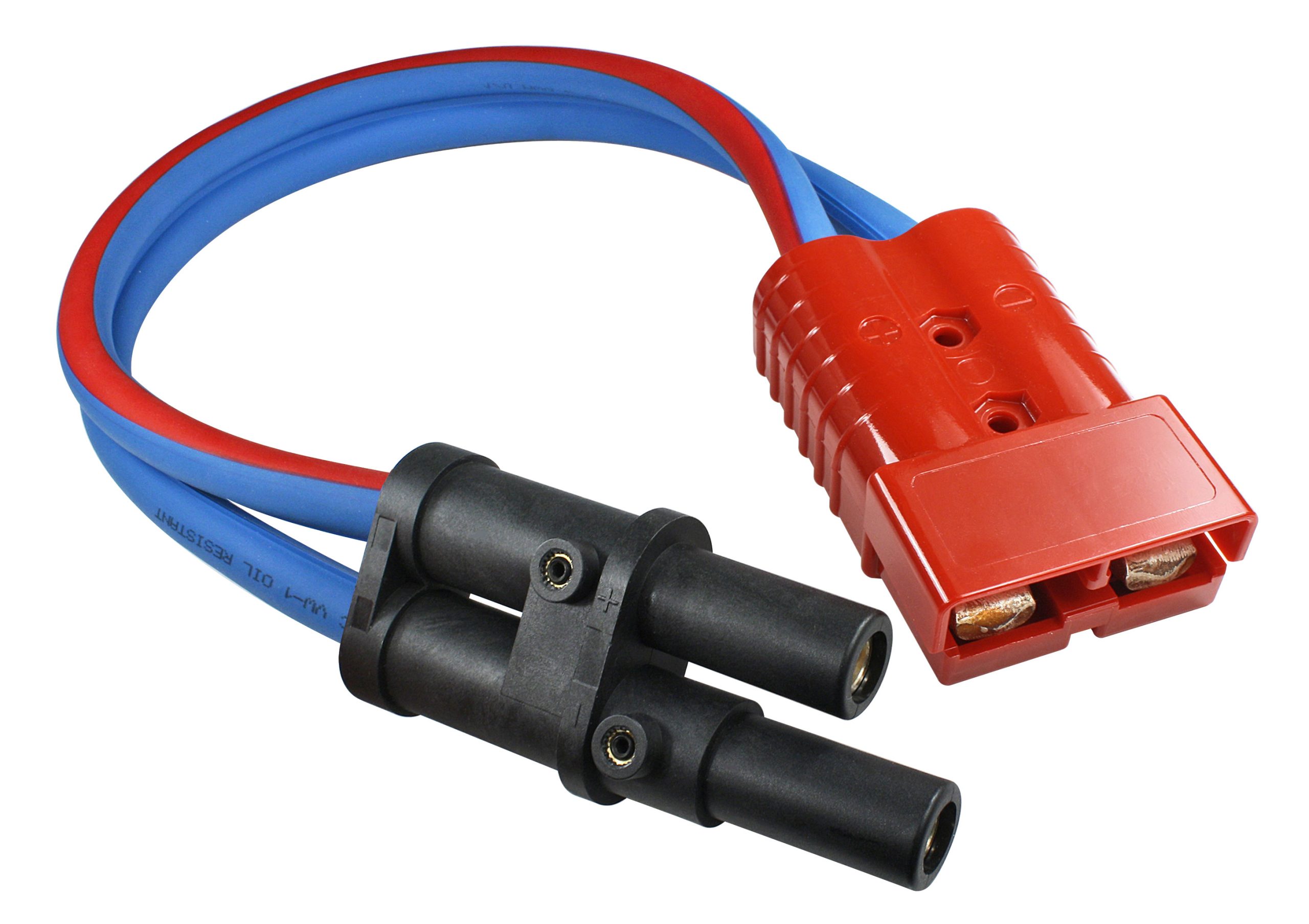

Jump Start Adaptor

Harness Components

Expand your existing harness system, or make your own configuation with individual components. Start with an Arctic Superflex Blue® clamp cable (jumper clamps to power connector) or connector cable (connectors on both ends) and swap in harness and clamp adaptor modules to suit each situation. Extra harnesses allow for multiple vehicle or fleet use. Add connector cables to extend the system as needed.
