Industrial Pure Copper Lugs

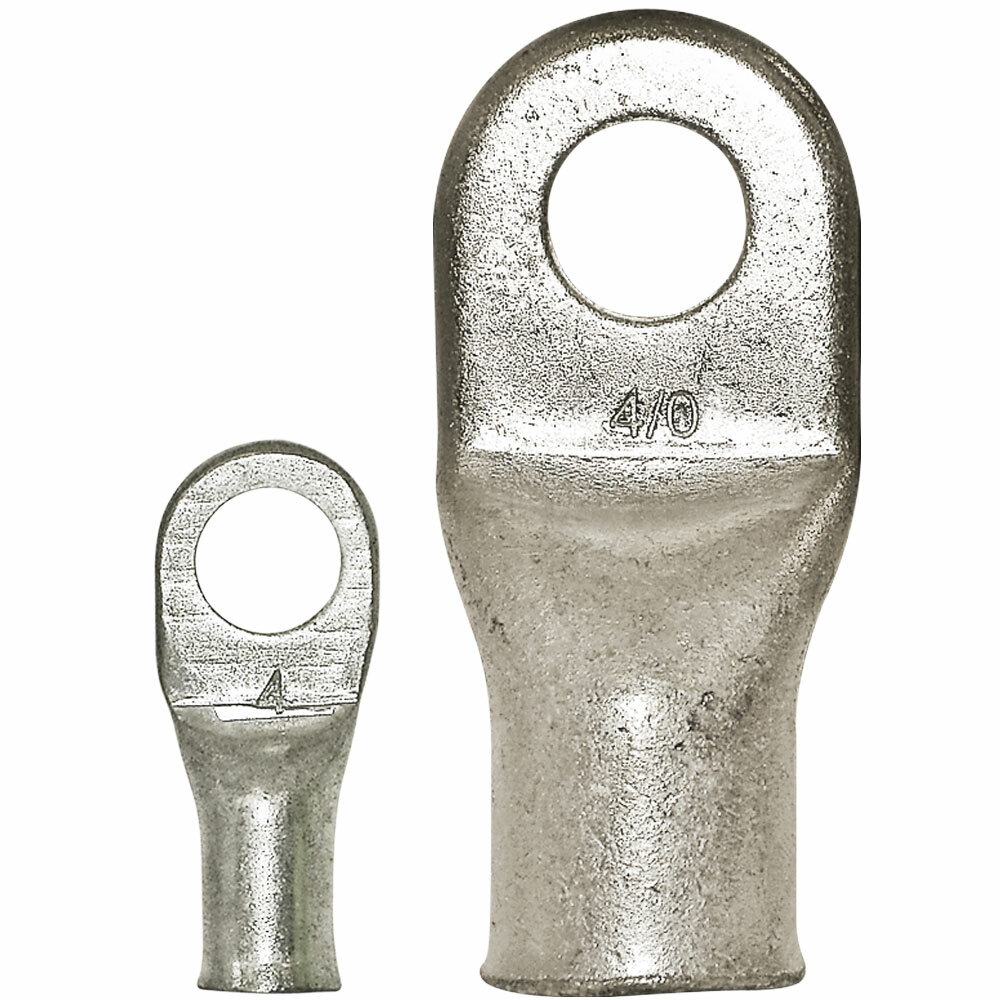

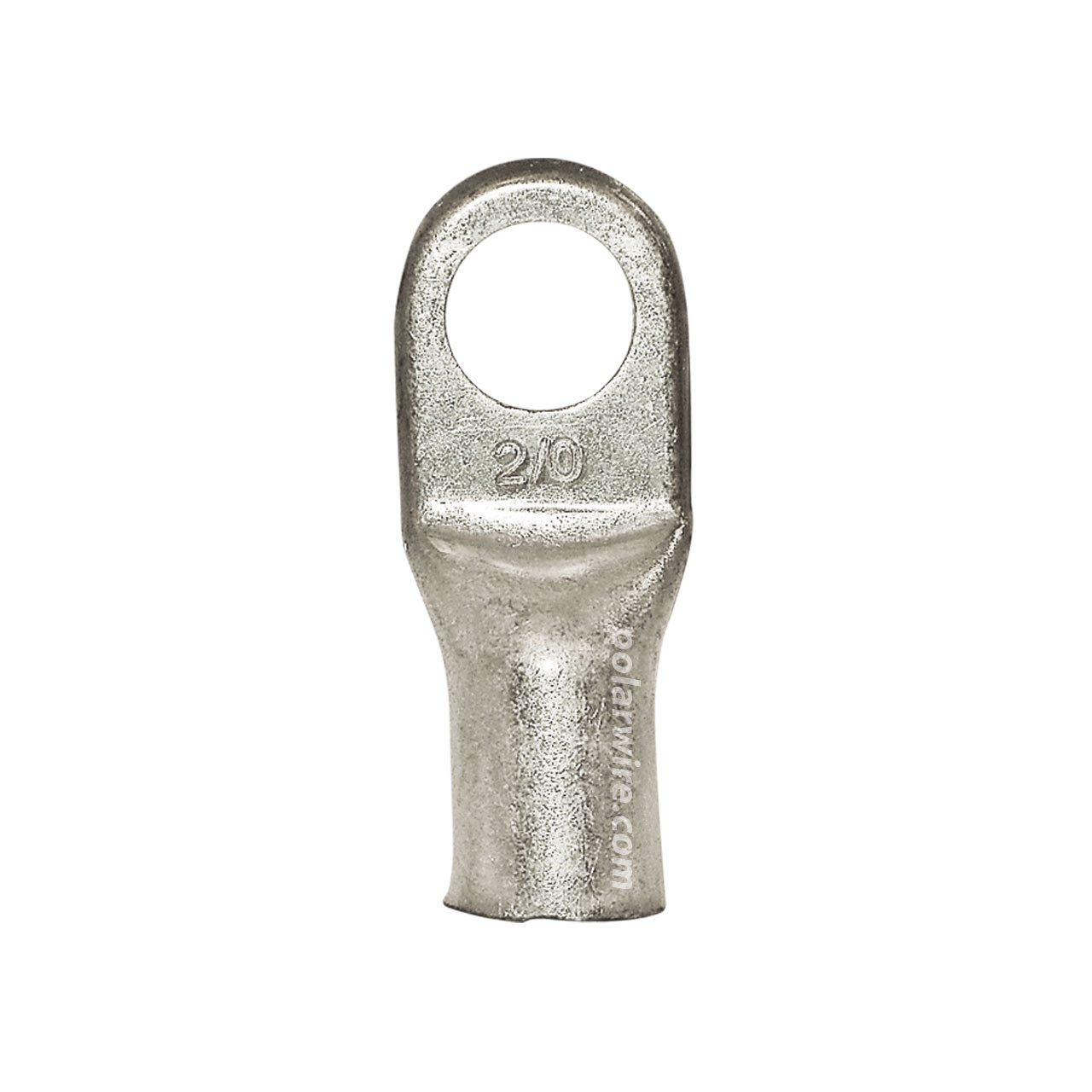

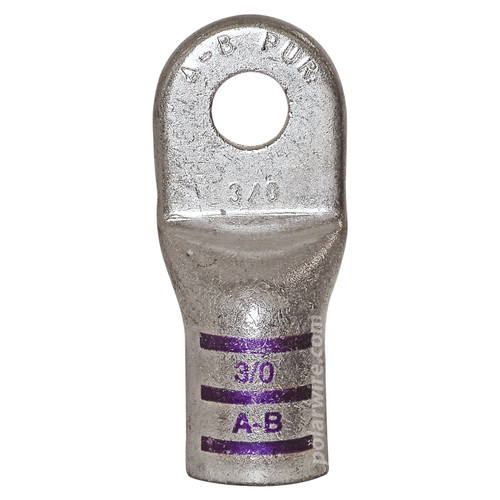

Heavy-Duty Closed-End Crimpable Eyelet Lugs are designed for electrical and industrial applications such as welding equipment, forklifts, generators, power distribution equipment, motors and other products. Manufactured of pure electrolytic copper. Available for 8 AWG to 250 MCM wire and cable with a variety of stud sizes.

Features

• 99.9% Conductive ETP Copper

• Premium seamless construction

• Available in tin plated or bare copper

• Sizes range from 8 AWG – 4/0 AWG

• Available in Straight, 45 Degree, 90 Degree Designs

• Compression or Solder

• Funnel barrel entry for easy wire insertion

• Round Tang

• 600 Volts, 90°C

• UL Listed, CSA Certified

Extreme Duty Power Lugs are often preferred in electrical applications due to their ability to handle high electrical currents, resist corrosion, and capacity to maintain a secure and reliable electrical connection over time.  Our Extreme Duty Power Lugs are thicker and dissipate heat better than traditional copper lugs. These robust lugs are all tin plated and constructed to withstand the most demanding environments - Commonly used in power distribution, industrial machinery, automotive, heavy-duty trucking, agriculture, marine and electrical infrastructure due to their reliability and conductivity.

Features

• Pure Copper – 99.9% Conductive ETP Copper

• Thicker and Seamless Pad

• Heavier Barrel Wall

• Tin Plated

• Color Coded – Die Coded

• Chamfered Barrel

• Rated for 600 Volt Applications

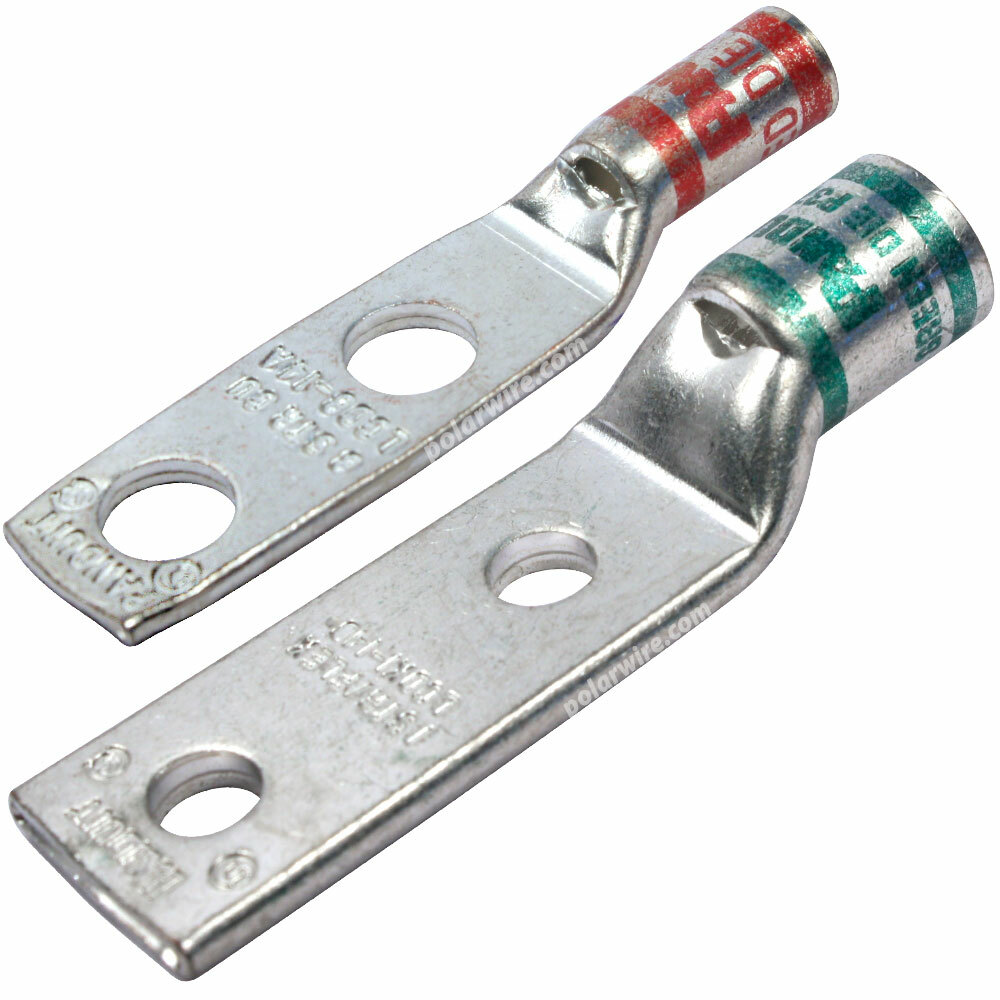

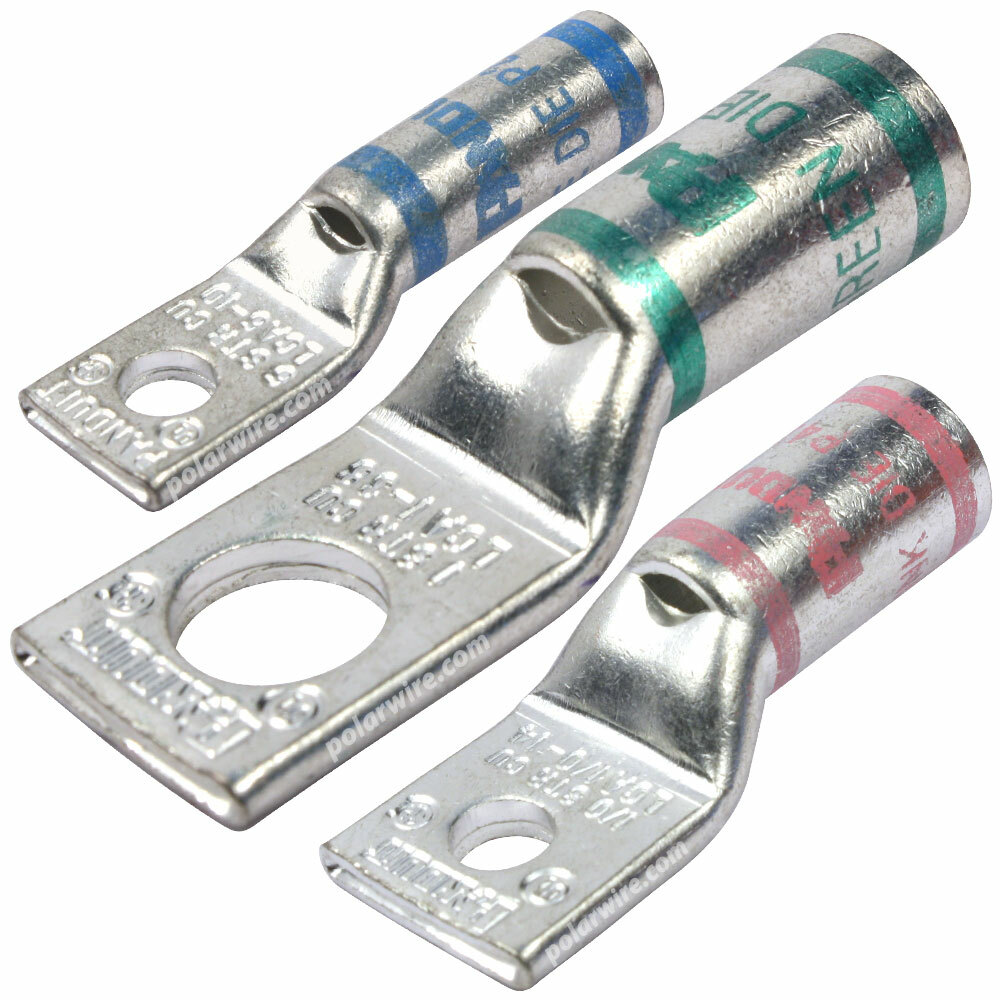

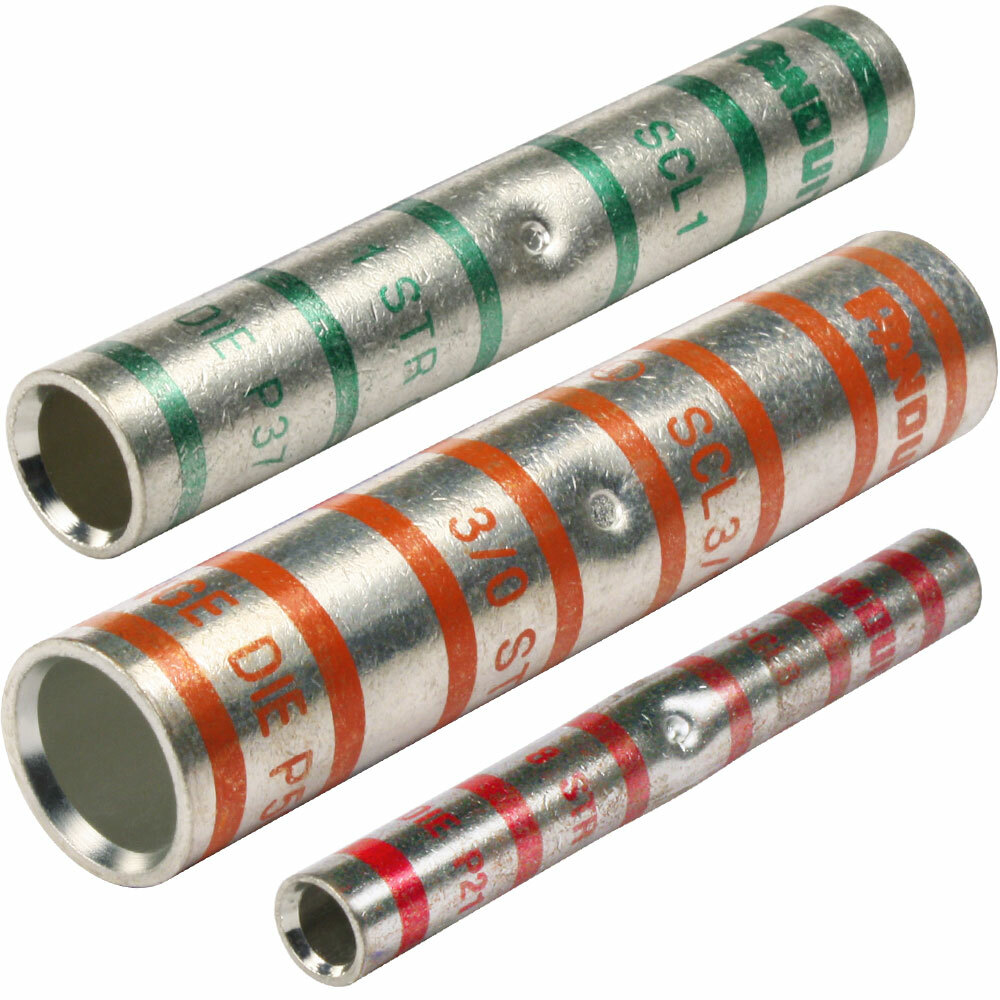

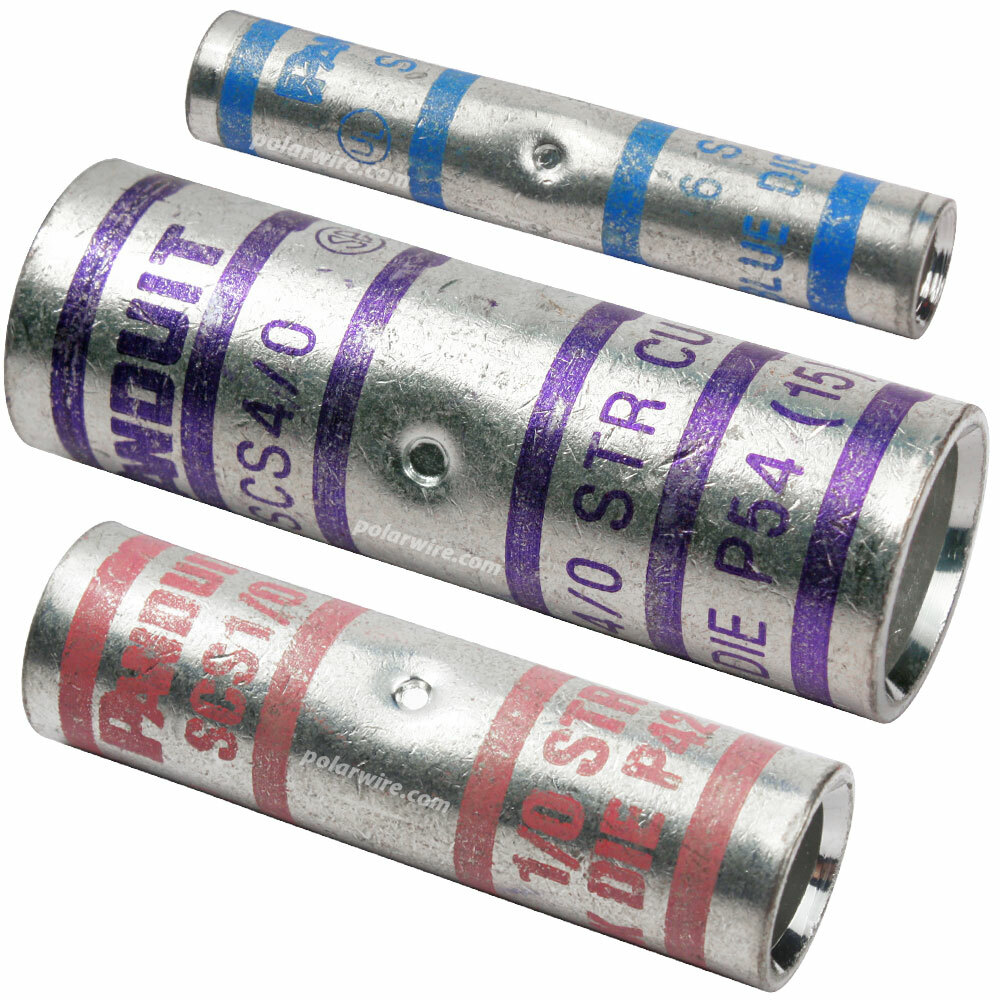

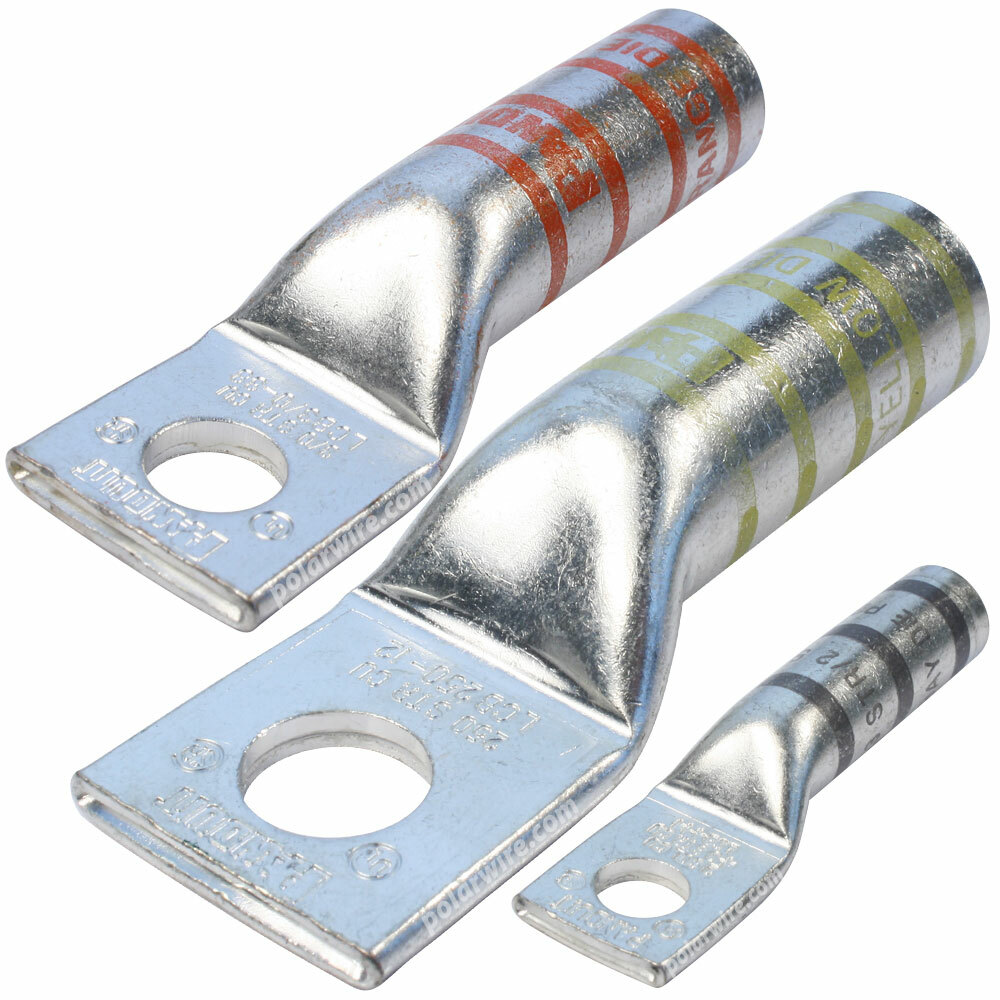

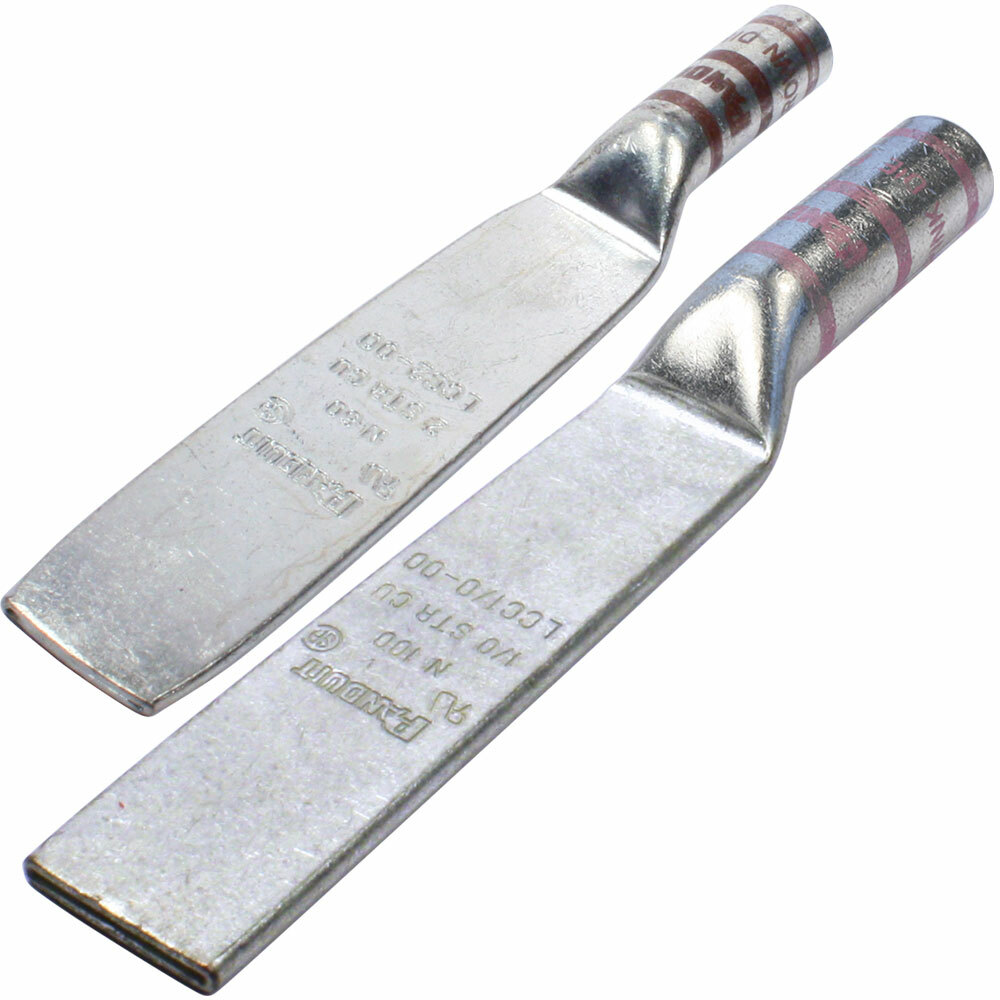

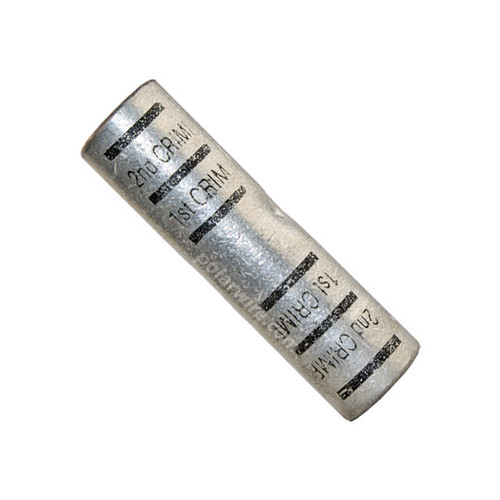

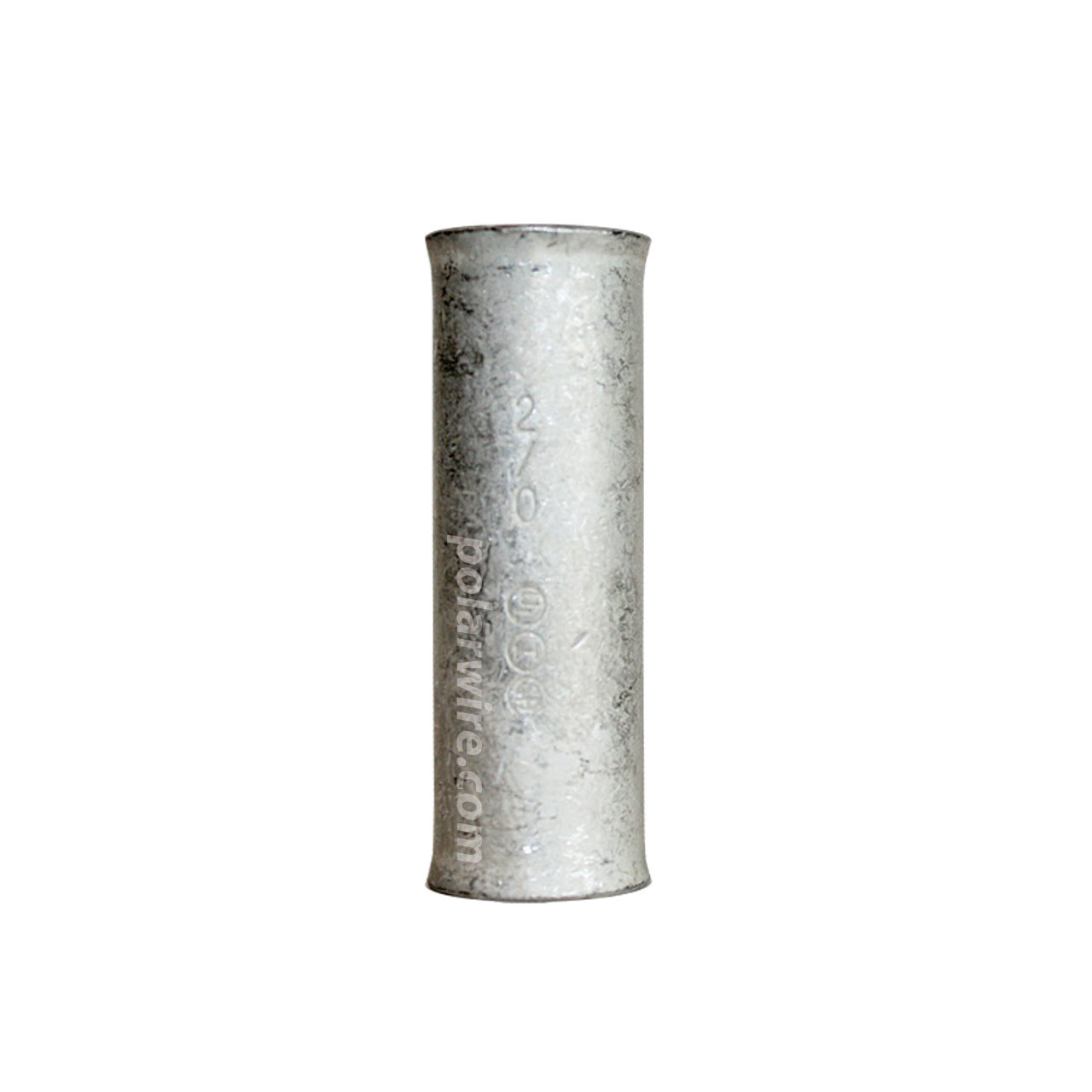

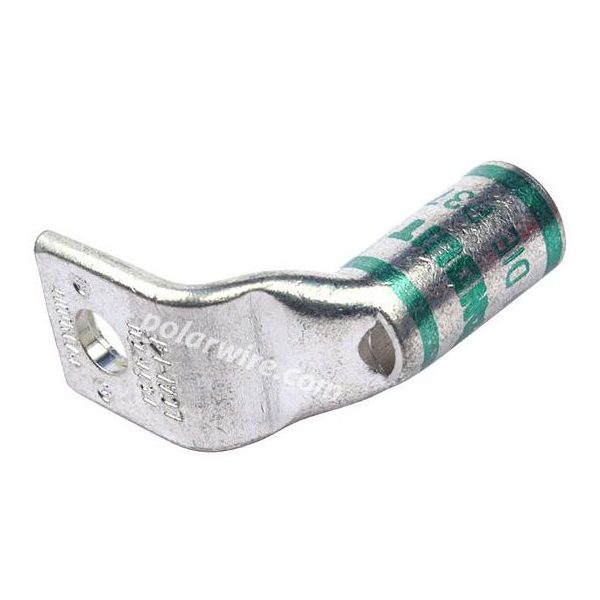

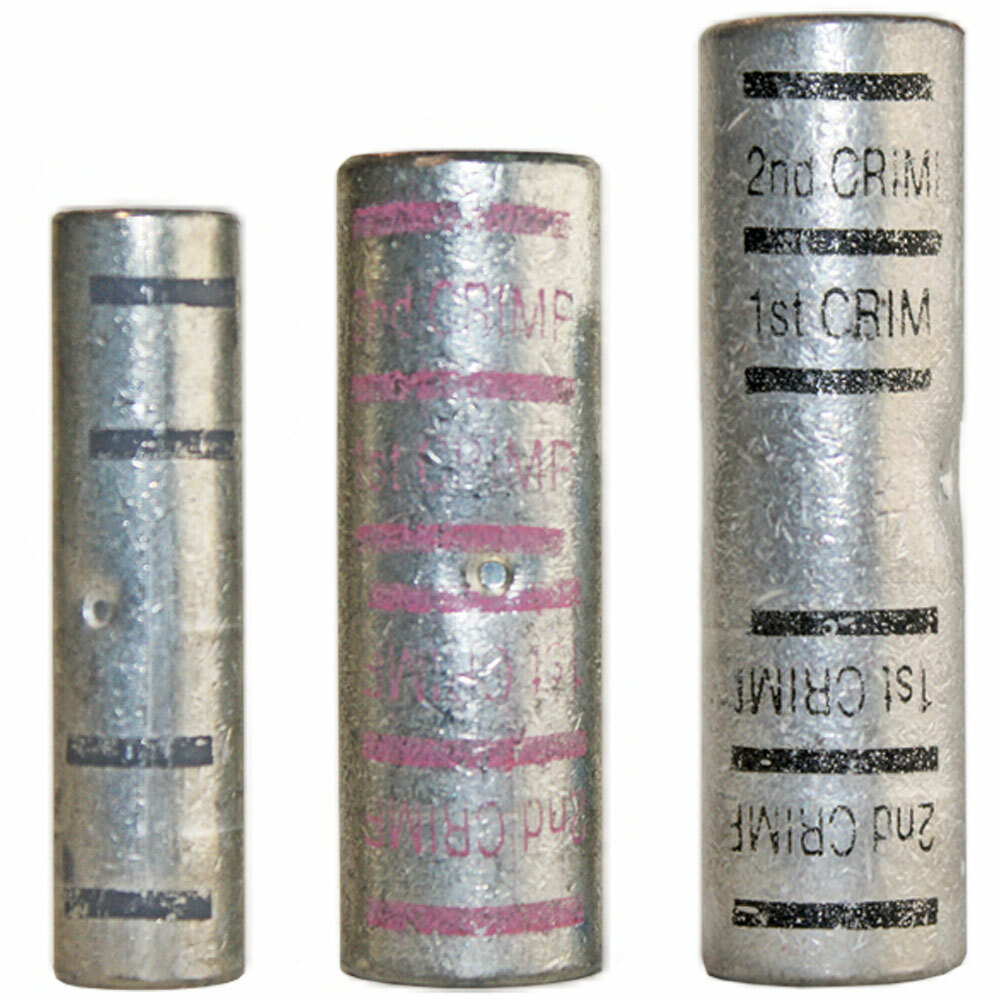

Made from high strength, highly conductive electrolytic copper, Industrial Code and Flex Compression Style Lugs and Splices are extra tough, durable, reliable, and 100% conductive. They crimp in industry standard tooling for lowest applied cost.

Features

• Manufactured from High Strength Seamless Electrolytic Copper Tubing

• Tin Plated

• 8 AWG – 1000 MCM

• Color Coded

• Chamfered Barrel Entry

• Standard and Long Barrel Designs

• One Hole and Two Hole Options

• With or Without Sight Hole

• Square Tang

• Rated to 90°C

• UL Listed or Recognized, CSA Certified, ABS Type Approved and tested by Telcordia – meets NEBS Level 3

• If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35kV.

• Terminations using Panduit ® Pan-Lug™ Compression Connectors are also UL Listed and CSA Certified with specified competitor tools

• For copper conductors only

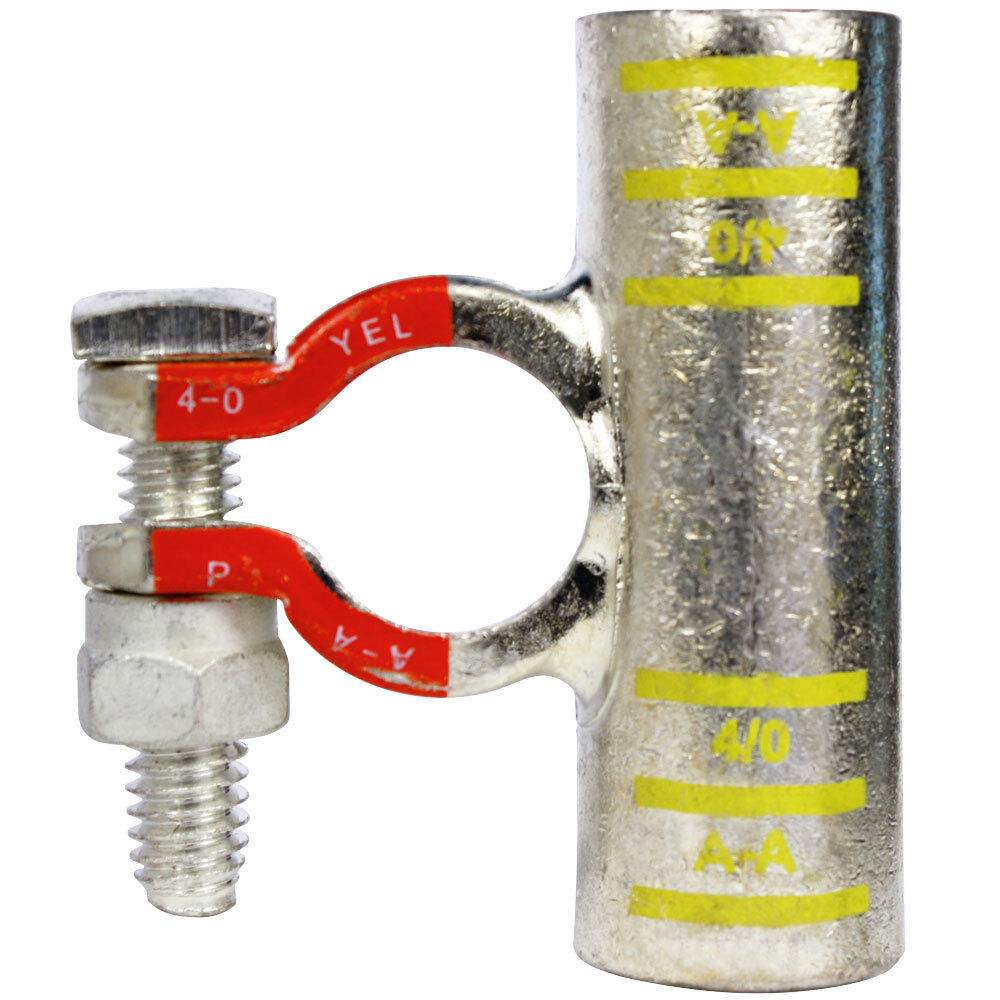

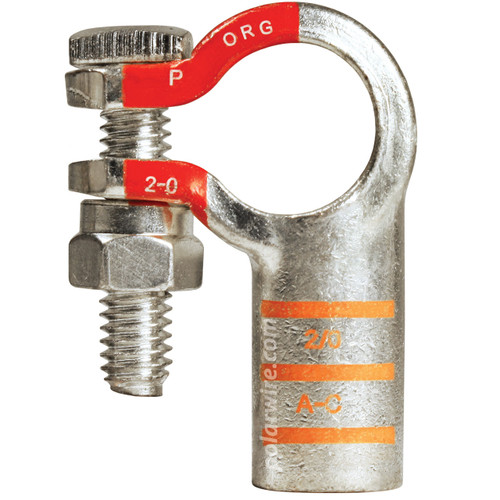

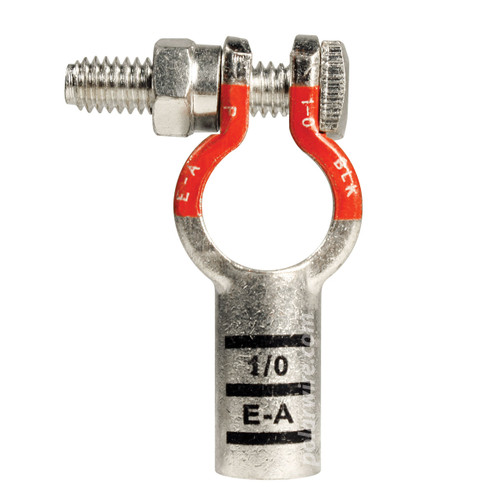

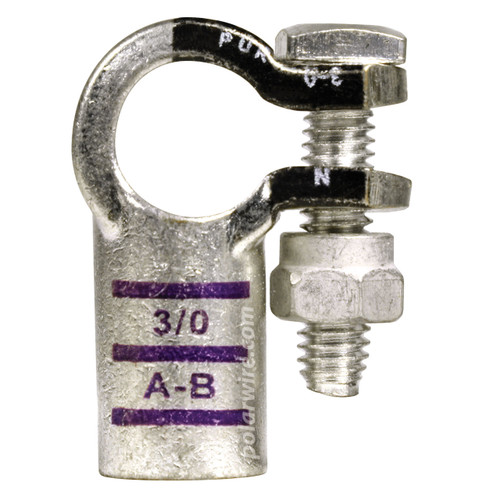

Environmentally friendly ECO-MAX® 100% Copper Battery Terminals are made with best quality C11000 ETP copper for high conductivity.

Features

• 99.9% ETP Copper Premium Design

• No Lead – Environmentally Friendly

• Tin Plated

• Color & Die Coded for Crimp Settings

• Sizes range from 6 AWG – 4/0

• Straight, Right & Left Elbow, Flag Designs

• Provided with Tinned Nut and Bolt Installed

• Max conductivity: 101% IACS at 68°F

• Compression or Solder

• Chamfered Barrel Entry

• Reach/RoHS Compliant

• Exceeds SAE Standard J-1811

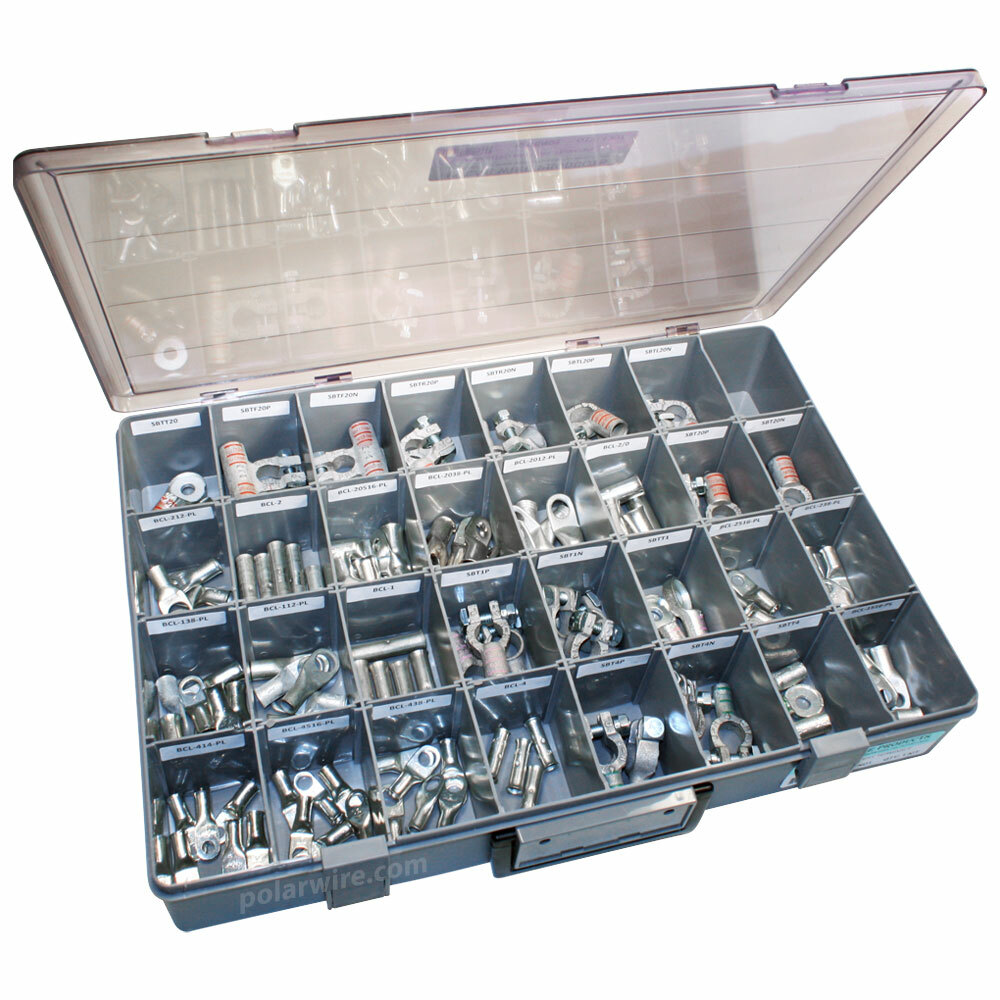

We offer many other terminals and accessories available for purchase on our online store!
